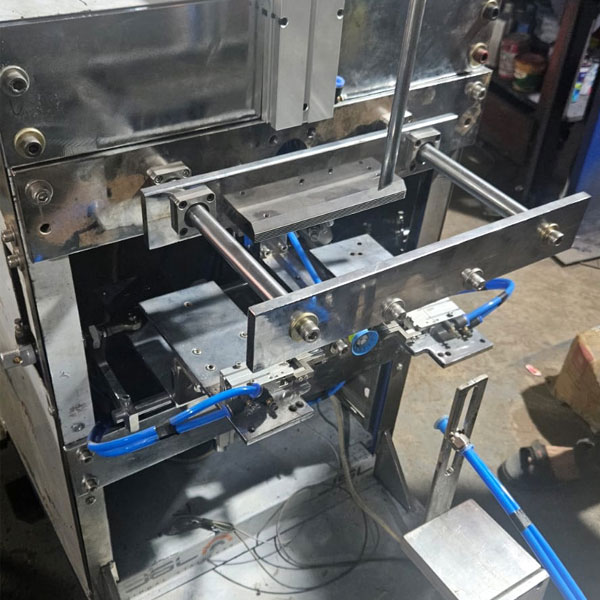

Automatic Pick Fill Seal Machine

Automatic Pick ,fill and  Seal Machine for packing Dry fruits, Confectionery, Snack Foods, Namkeen, potato chips , Pharmaceutical products etc.in preformed sachets. The machine works automatically in picking, filling and sealing of pouches. It offers flexibility of using pouches in different forms such as stand-up pouches, side seal pouches, zippers and many more.

Applications:

• The machine is used in packing and filling any type of pouch containing dry fruits, namkeen, confectionery products, liquid, viscous liquid, semi solid, powder, grains, incense sticks , inner sachets, irregular shape products and many more.
• Different filler heads used for filling includes: Linear Weigher, Auger Filler, Gravity Filler, Piston Filler and Cup Filler or We can  fill the pouch manually.

Features

• PLC control with HMI for smooth operations
• Quick change over  bag, Size change usually takes 10 min or less
• No pouch or failure of pouch opening  No fill
• Lubrication-free plastic bearing for less pollution
• No oil vacuum pump, thus maintaining cleanliness in production area
• Product or pouch contact parts are stainless steel or suitable food grade materials with comply food hygienic requirements.

Specification

Brand	Idea Packaging
Country of Origin	Made in India
Pneumatic components	Janatics make
Speed (Bag/min.)	10-20/bags min
Type of Sachets	Preformed Sachets/ Stand-up Pouch/Zipper Sachets
Temperature Controller	PID
HMI	Color Touch screen
PLC	Programmable Logic Control
Filling System	Multihead weigher/ Linear weigher/cup filler/auger filler
Power Consumption	2.5Kw, 220V/50 Hz.
Weight kg(gross)	600 approx
Air	8 -12 Bar Pressure
Products that can be Packed	Dry fruits, Tea, Snack foods, Confectionery products, Pharmaceutical products, Spices,Rice etc.
