Pick-Fill-Seal (PFS) Machines
With Idea's Pick-Fill-Seal machine, you can combine the advantages of productivity, variety, and speciality packaging for ready-to-eat foods. The machine conveniently packs a wide range of ready-to-eat foods in eye-catching, creative forms while preserving the items' freshness thanks to its adaptable rotary technology. The device is small, robust, and simple to maintain and clean.
Pick-Fill-Seal (PFS) Machines
Form Fill Seal Machines To Pack Granules & Liquid in One Sachet
A machine for both liquid and salt pouch packaging is a specialized machine designed to handle different product types, or a multi-purpose machine that can be adapted for both.
| Speed (Bag/min.) | 30 – 50. |
| Filling Cap.Gms/ml | 50 – 100gms/10 – 100 ml. |
| Bag Size mm | (RW)180 – 340,(L)120 – 240. |
| Seal Style | Side Seal/Four Side Seal |
| Measuring Method | Cup & liquid dosage pump |
| Power | 1/2 & 1/4H.P. 220VSingle Phase 50 – 60 Hz Heater : 150W – 2Pc,200W – 2Pc, 300W – 2Pc,500W – 2 Pc. |
| Laminate Structure | Polyester/ Met/ Al Laminated Foil, Heat Sealable plain, Pearliest BOPP & any Heat Sealable Film Core Dia: 75 mm Max Outer Dia : 350mm. |
| Weight Kg (gross) | 600 |
| Dimension | 1000 x 910 x 1560. |
| Application | for Packing granules and liquid in one sachet. |
| Products to Pack | Popcorn, Salt & Oil |

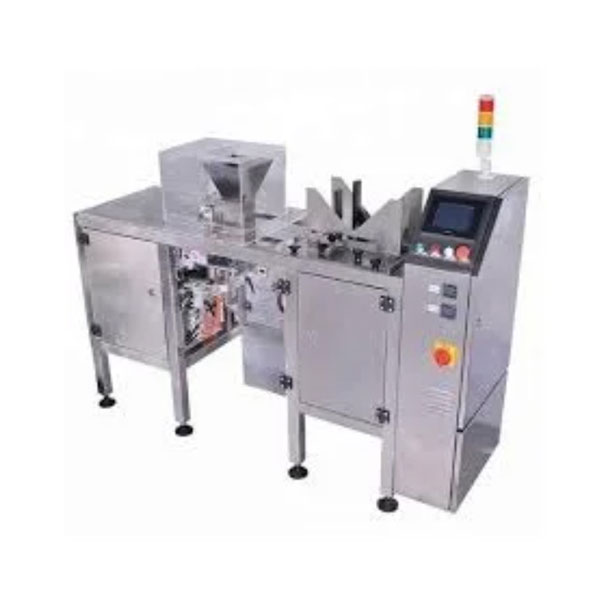

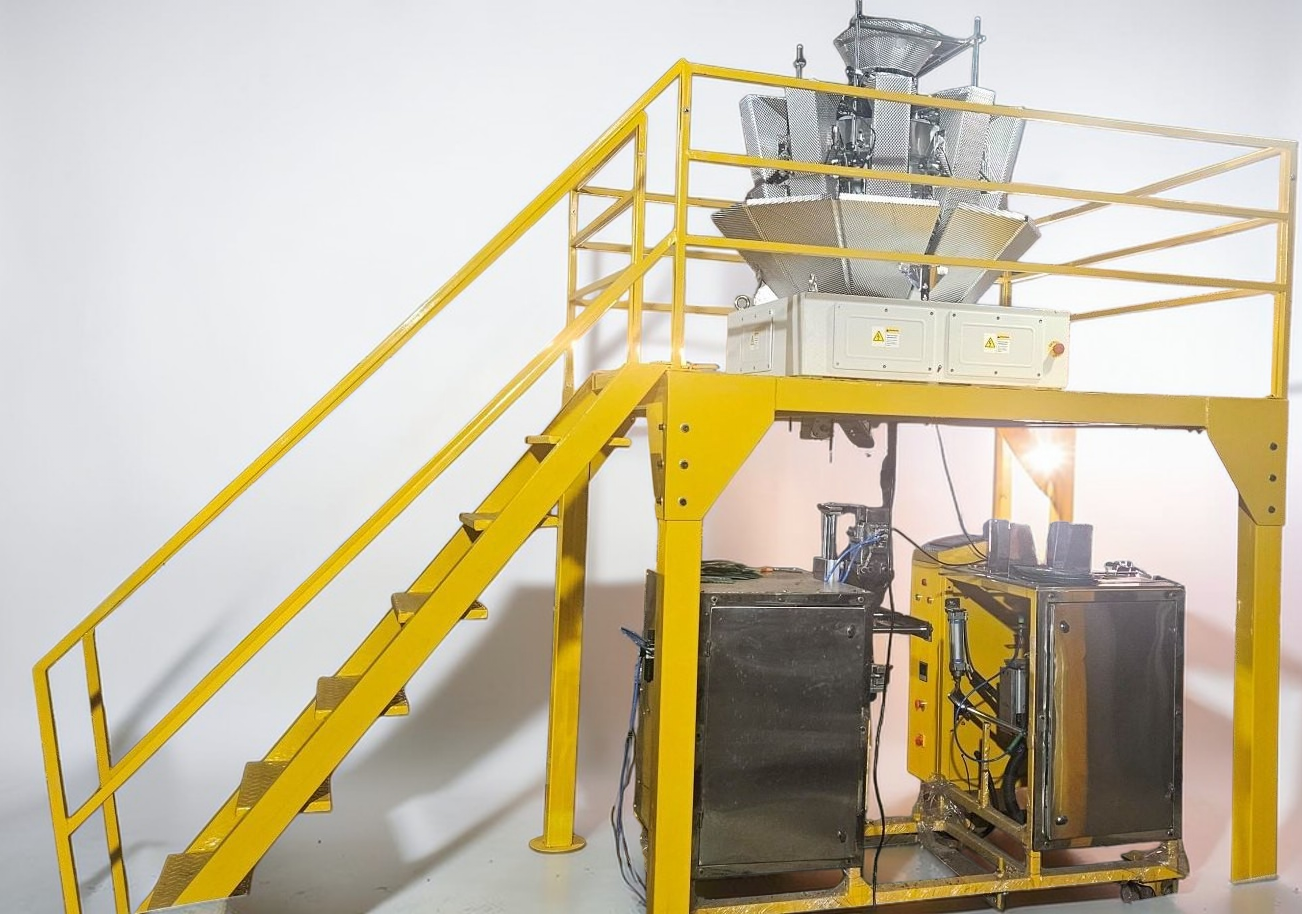

Automatic Pick Fill Seal Machine – Multihead Weigher
Idea Packaging Automatic Pick fill and Seal Machine for packing Dry fruits, Confectionery Products, Pulses, Rice, Snack Foods, Namkeen, Potato Chips, Pharmaceutical products etc.in preformed sachets.
| Brand | Idea Packaging |
| Country of Origin | Made in India |
| Pneumatic components | Janatics make |
| Speed (Bag/min.) | 10-20/bags min |
| Type of Sachets | Preformed Sachets/ Stand-up Pouch/Zipper Sachets |
| Temperature Controller | PID |
| HMI | Color Touch screen |
| PLC | Programmable Logic Control |
| Filling System | Multihead weigher/ Linear weigher/cup filler/auger filler |
| Power Consumption | 2.5Kw, 220V/50 Hz. |
| Weight kg(gross) | 600 approx |
| Air | 8 -12 Bar Pressure |
| Products that can be Packed | Dry fruits, Tea, Snack foods, Confectionery products, Pharmaceutical products, Spices,Rice etc. |

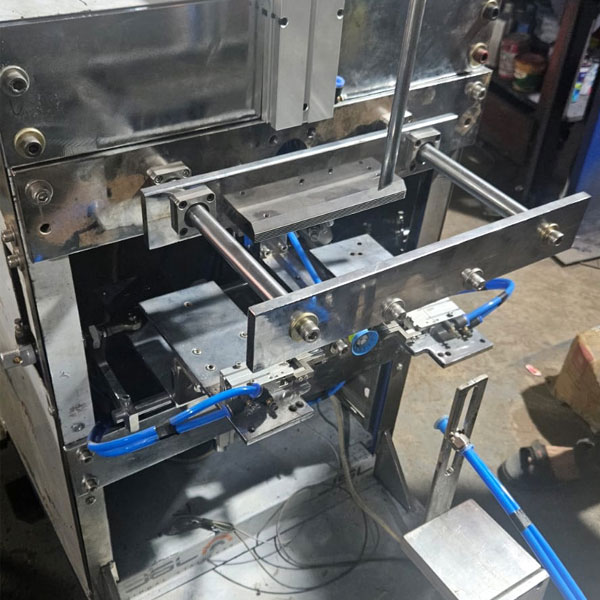

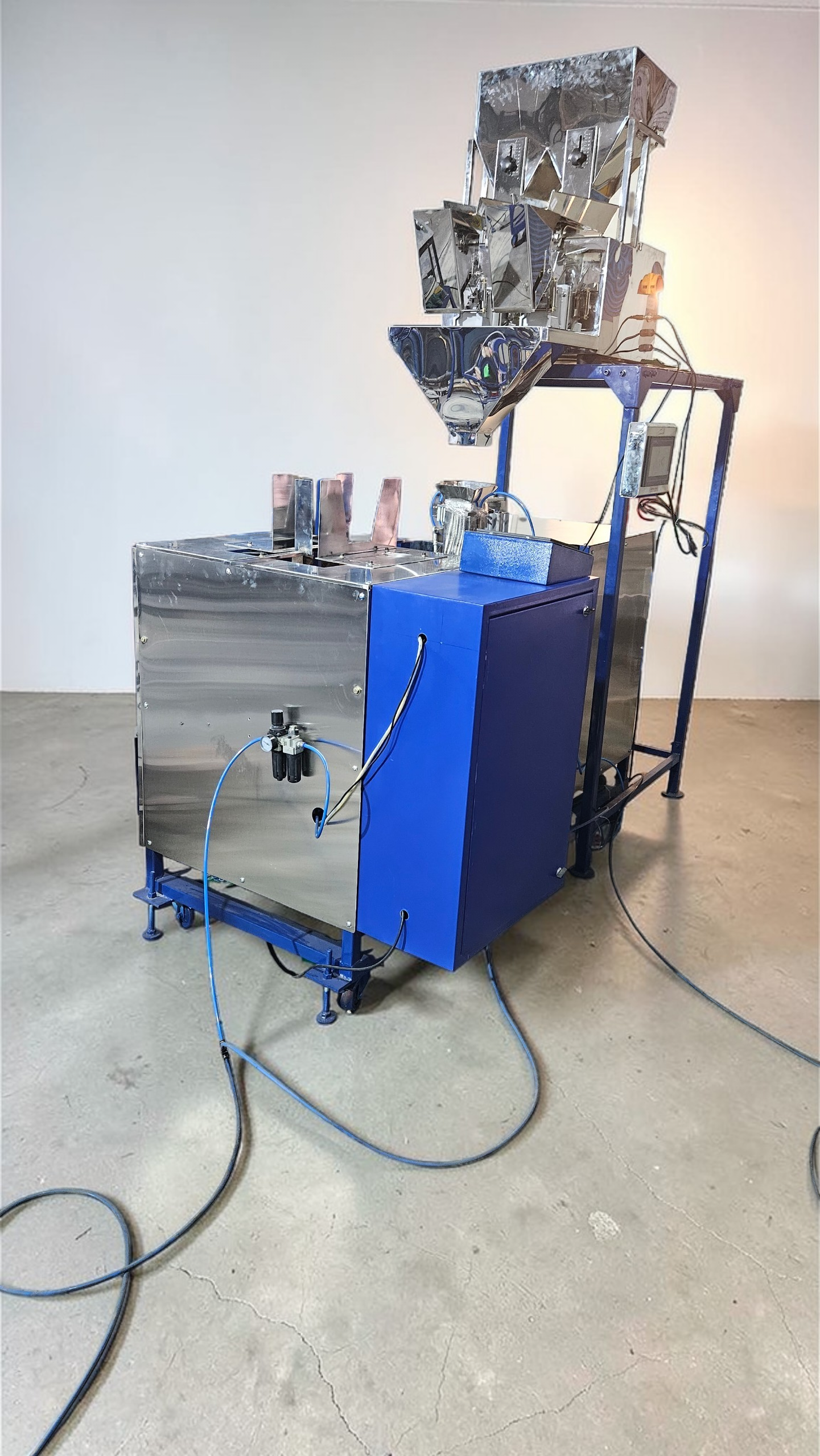

Automatic Pick Fill Seal Machine
Automatic Pick ,fill and Seal Machine for packing Dry fruits, Confectionery, Snack Foods, Namkeen, potato chips , Pharmaceutical products etc.in preformed sachets. The machine works automatically in picking, filling and sealing of pouches. It offers flexibility of using pouches in different forms such as stand-up pouches, side seal pouches, zippers and many more.
| Brand | Idea Packaging |
| Country of Origin | Made in India |
| Pneumatic components | Janatics make |
| Speed (Bag/min.) | 10-20/bags min |
| Type of Sachets | Preformed Sachets/ Stand-up Pouch/Zipper Sachets |
| Temperature Controller | PID |
| HMI | Color Touch screen |
| PLC | Programmable Logic Control |
| Filling System | Multihead weigher/ Linear weigher/cup filler/auger filler |
| Power Consumption | 2.5Kw, 220V/50 Hz. |
| Weight kg(gross) | 600 approx |
| Air | 8 -12 Bar Pressure |
| Products that can be Packed | Dry fruits, Tea, Snack foods, Confectionery products, Pharmaceutical products, Spices,Rice etc. |
Rotary Pick-Fill-Seal Packing Machine
Namkeen Packing Machine is another name for Idea Packaging's Rotary Pick Fill Seal Machine. When it comes to readymade bags, these machines are ideal. Your packaging procedures can be optimised using our Rotary PFS Packaging Machine. These machines facilitate the seamless operation of your firm. Prepared pouches can boost output by up to 50%. Our prefabricated pouch packing machines provide something entirely different from VFFS gear, which uses roll stock film to create bags.
A flexible, completely automated packaging option for pre-formed pouches is the Pick Fill and Seal (PFS) Machine. The machine takes up empty pouches, fills them with exact amounts of product, and tightly seals them using sophisticated rotary indexing technology. In food, pharmaceutical, cosmetic, and industrial uses, this guarantees hygienic, efficient, and tamper-proof packaging.
